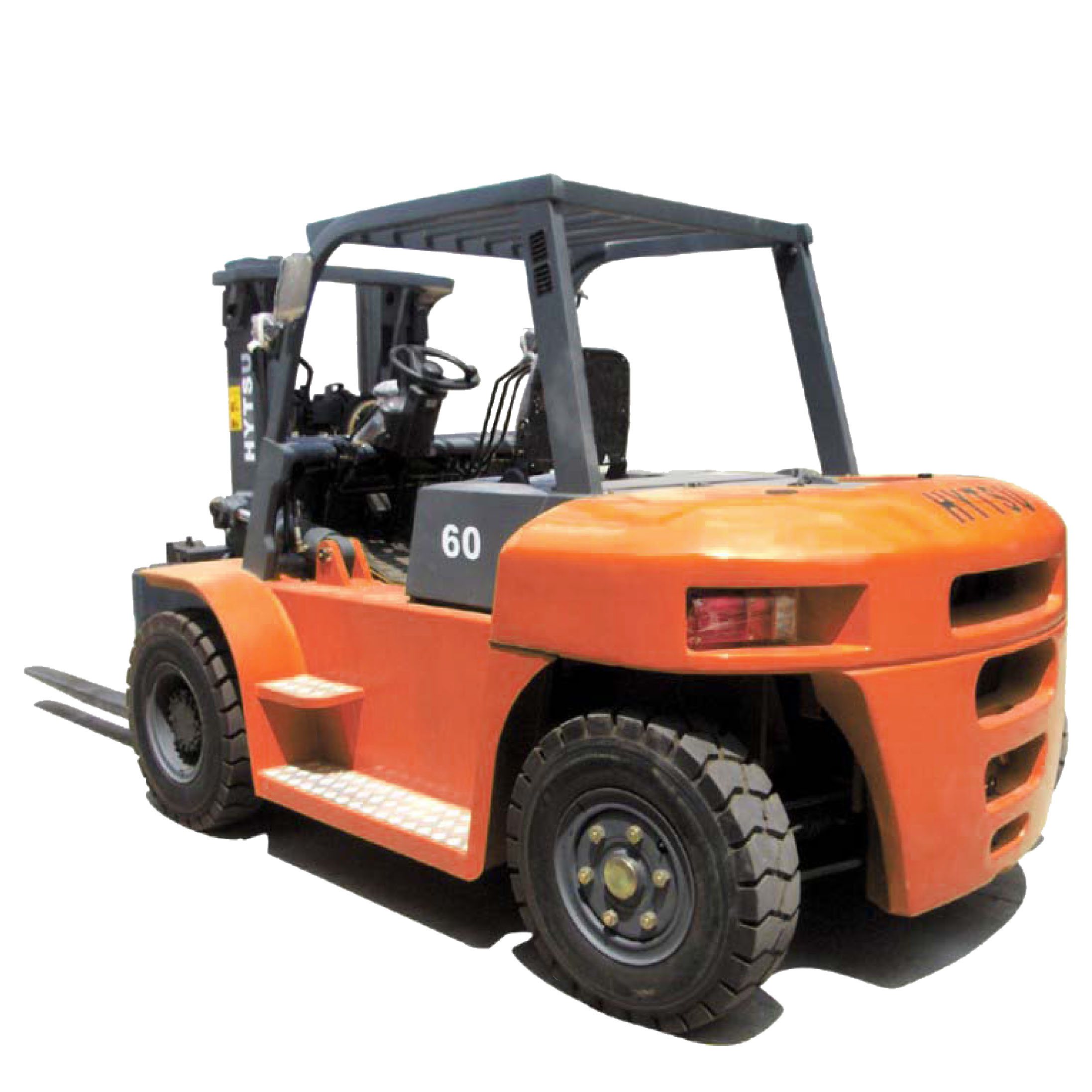

5.0 - 7.0 Ton Container Use Forklift
| Parameter: | ||||
| Model |
|
CPCD50C
|
CPCD60C
|
CPCD70C
|
| Rate Capacity |
kg/lb
|
5000/11000
|
6000/13200
|
7000/15400
|
| Load Center |
mm/in
|
600/23.6
|
600/23.6
|
600/23.6
|
| Power Type |
|
Diesel
|
Diesel
|
Diesel
|
| Lift Height |
mm/in
|
2500/98.4
|
2500/98.4
|
2600/102.4
|
| Free Lift Height |
mm/in
|
1250/49.2
|
1250/49.2
|
1250/49.2
|
| Turning radius |
mm/in
|
3250/128
|
3300/130
|
3360/132
|
| Min,right angle aisle width |
mm/in
|
2960/116.5
|
3000/118
|
3040/119.5
|
| Max.gradeability |
%
|
20
|
20
|
20
|
| Self weight |
kg/lb
|
8000/17620
|
8500/18720
|
9350/20595
|
| Engine Model |
|
ChaoChai 6102BG / ISUZU 6BG1
|
||
| Engine Rated output |
kw/rpm
|
73/2200 / 82/2000
|
||
| Transmissions Type |
|
Hydraulic
|
||
